VACUUM LIFTERS FOR SHEET TILT 9O°

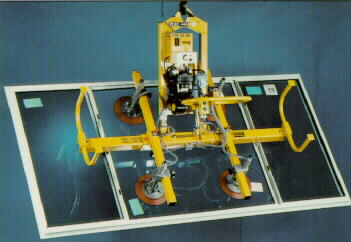

A new series of powered tilt vacuum lifters for handling a variety of porous and non-porous sheet and panel materials with easy fingertip control is introduced by Anver Corporation. Anver ET Series powered tilters feature a lightweight, easy to maneuver narrow frame, totally adjustable vacuum cup placement, and a handle bar with fingertip control for tilting loads up to 90° under power. Providing a 100% continuous duty cycle with instant attach and release, they operate in conjunction with a hoist and are designed for handling standard size porous and non-porous materials including glass, stone, wood, plastics, and dry wall panels up 6 x 12 ft. (1.8 m x 3.6 m) are handled with ease. Available in 500, 1000, and 2000 Ibs. models (225 Kg., 450 Kg. and 900 Kg.) with 2, 4, or 8 vacuum cups, Anver ET Series powered tilters incorporate an oversize vacuum pump, filter, and electric actuator for each rated capacity. Main beams range from 48" to 110" (1.2 m to 2.8 m) long, depending upon model, and the cross arms are typically 44" (1.1 m) wide. Powered by 115 V single phase, or compressed air, they can be equipped with a wide selection of vacuum cup styles to match specific user requirements. Circle No. 92. See our advertisement Page 44.
