VACUUM OPERATED WORKHOLDING SYSTEM

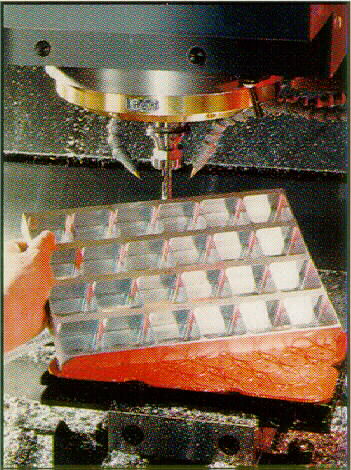

IBAG North America offers the VAC-MAT(TM), a unique vacuum operated workholding system that has proven ideal for machining parts from plastics, composites and other material. The key to the system is a plastic mat, 12" x 8" x .06" thick, with an array of lipped-edged workpiece holding "suckers" on the top side, each with a small hole through the center. Underneath are six lugs to position the VAC-MAT on the vacuum table top. A grid of grooves distributes the vacuum to each of the small holes and to a holding lip edge around the circumference. The cutting tool can machine right into and through the inexpensive, disposable VAC-MAT, eliminating break-out, deburring and other secondary operations. The VAC-MAT material is a recyclable plastic and is not affected by coolant. Several VAC-MATs may be fitted together to accommodate larger workpieces. The use of VAC-MATs is simplified by configuring available 8" x 12" x 1.25" modular aluminum adapter plates.

For more information, contact IBAG North America, 80 Republic Dr., North Haven, CT 06473, 203-874-2585, FAX 203-783-1843.
