HORIZONTAL PANEL SAW

A new CNC panel saw for plastics that features a solid back table for cutting smaller pieces, along with optimizing software to create the best cut pattern, is being introduced by Hendrick.

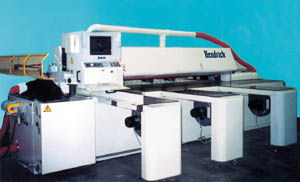

The Patriot CNC Panel Saw features a 40" wide solid back table for cross-cutting small parts, an infinitely variable saw carriage, automatic side aligner for securely holding narrow pieces against the side squaring fence, and adjustable air-flotation front tables for easy panel handling. Equipped with a PC controller and windows-based optimizing software, all operations from cut planning to cutting can be simulated before starting.

Capable of cutting at speeds up to 150 FPM, with +/-.005" repeatability, the CNC panel saw is powered by a 15 HP continuous-duty main saw blade motor and 2 HP scoring blade motor. The material pusher is driven by AC servo and rack and pinion, grippers hold the panel securely, and the jaw opens for a 4" deep cut. The saw is suitable for wood and plastics and the controller is compatible with all third party optimization software.

For more information, contact Linda Wiggin, Marketing Director, Hendrick, Division of RWH Industries, Inc., 36 Commercial St., Salem, MA 01970, 978-741-3600, FAX 978-774-0242, E-mail: hendrickrw@aol.com.
